Partially release the coolant expansion tank for the low-temperature coolant circuit

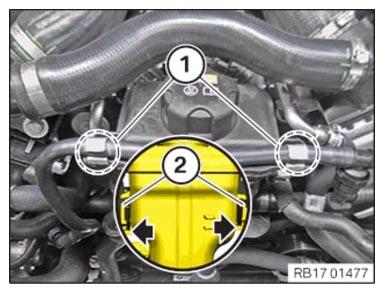

• Draw out the tank vent line in the region (1)  and set it aside.
• Unlock the clamps (2)  in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

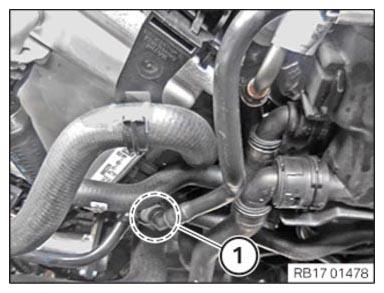

• Unlock and disconnect the tank vent line (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

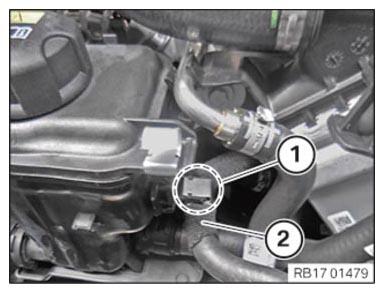

• Unclip the coolant vent line (2)  from the clamps in the region (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

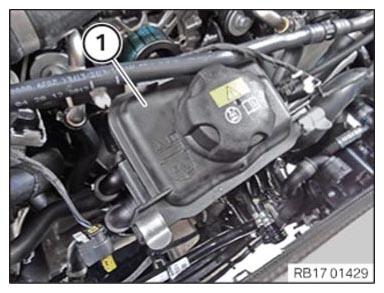

• Carefully draw out the coolant expansion tank (1)  and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
