Install the holder of the positive battery cable

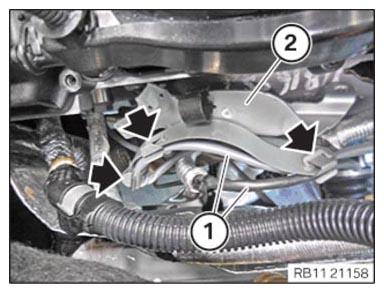

- Feed in bracket (2) of positive battery cable and position.
- Fasten cable (1)
in clamps (arrows).
- Version A (without mild hybrid technology):CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.

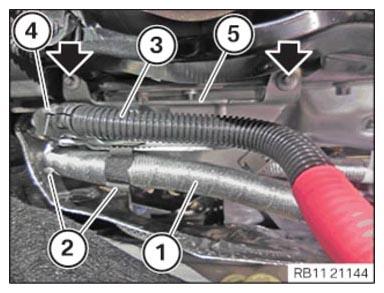

- Feed in bracket (5) of positive battery cable and position.
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Holder, positive battery cable to cylinder head cover 6X18 tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2) .
- Secure the positive battery cable (3) at the clamps (4) .
- Version B (with mild hybrid technology):CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.

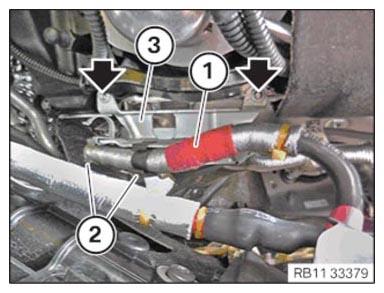

- Feed in bracket (3) of positive battery cable and position.
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Holder, positive battery cable to cylinder head cover 6X18 tightening torque 6 Nm - Secure the positive battery cable (1) at the clamps (2) .
