Unscrew the screw connection for the coolant pump
Unscrew the screw connection for the coolant pump

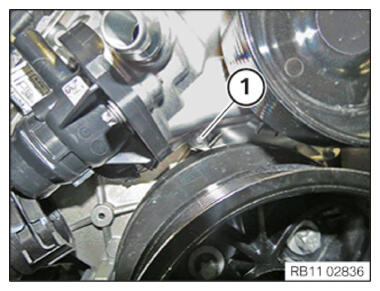

Loosen screw
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.

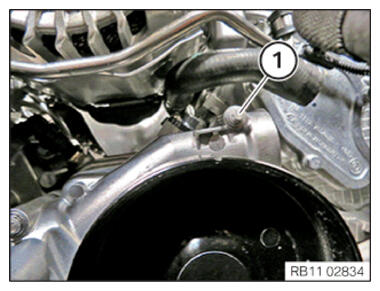

Loosen screw
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.

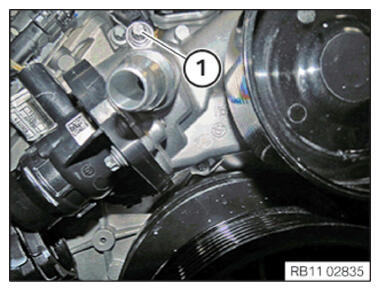

Loosen screw
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.

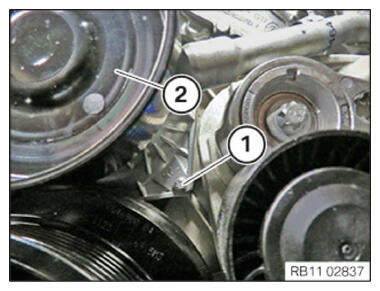

Loosen screw
(1)
.
Detach the coolant pump
(2)
and remove it to the top.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
