Removing the bracket of the oxygen sensor connector
Removing the bracket of the oxygen sensor connector

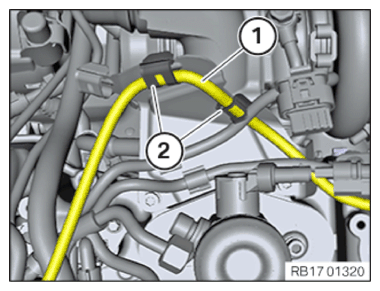

Release the cable
(1)
from the metal clamps
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

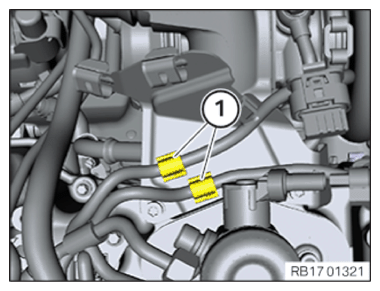

Unlock the wiring harness mountings
(1)
.
Set the vehicle wiring harnesses aside.
Courtesy of BMW OF NORTH AMERICA, INC.

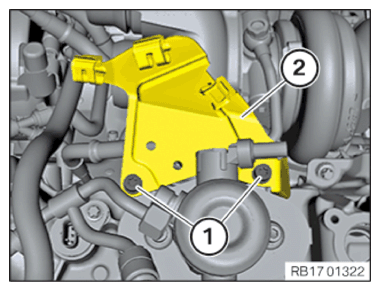

Loosen screws
(1)
.
Remove the oxygen sensor connector
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
