Release the cable distributor
Release the cable distributor

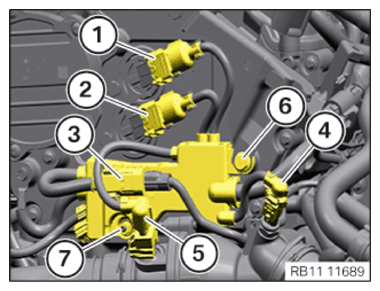

Unlock connector (1) and detach.
Unlock connector (2) and detach.
Unlock connector (3) and remove.
Unlock connector (4) and detach.
Unlock the connector (5) and detach.
Loosen screw (6).
Loosen nut (7).
Place the cable distributor to one side.
