Installing fuel supply line (partial installation)

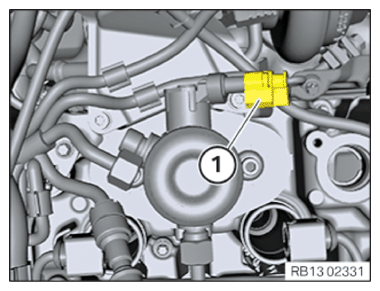

Connect and lock the plug connection of the high pressure pump (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Position the fuel delivery line.

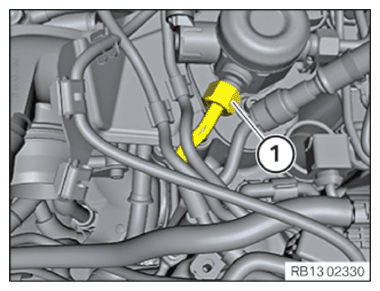

Tighten the fuel supply line (1) .

TIGHTENING TORQUE SPECIFICATIONS

Fuel delivery line to high pressure pump
M14	Tightening torque	30 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

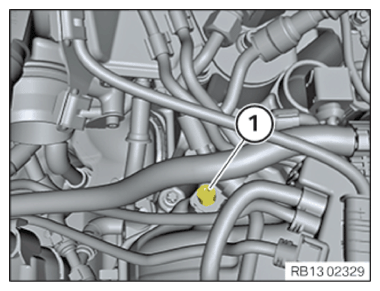

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Fuel supply line to cylinder head cover/cylinder head
M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
