Install the heat shield at the cylinders 1 to 4
Install the heat shield at the cylinders 1 to 4

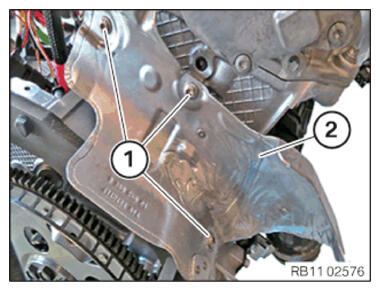

Position the heat shield
(2)
at the cylinder head.
Tighten the screws
(1)
.
TIGHTENING TORQUE SPECIFICATIONS
Heat protection plate
M6x16
tightening torque
10 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
