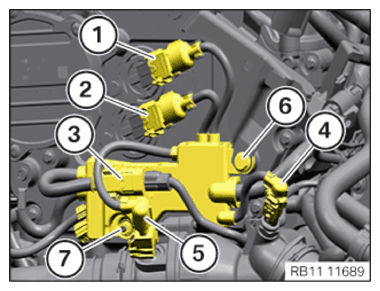

Fastening the cable distributor
- Position the cable distributor.
- Tighten nut (7)
.TIGHTENING TORQUE SPECIFICATIONS
cable distributor to cylinder head Nut 5 Nm - Tighten down screw (6)
.TIGHTENING TORQUE SPECIFICATIONS
cable distributor to cylinder head M6x16 10 Nm - Attach and lock the connector (1) .
- Attach and lock the connector (2) .
- Attach and lock the connector (3) .
- Attach and lock the connector (4) .
- Attach and lock the connector (5) .
