Engine - Turbocharger/Vacuum Pump/EGR/02 Sensors - Repair (G12)
>>
11 66 Vacuum Pump
>>
11 66 000 Removing and installing/replacing vacuum pump (750i 2016-2019)
>>
Replacing the O-ring of the vacuum pump
Replacing the O-ring of the vacuum pump

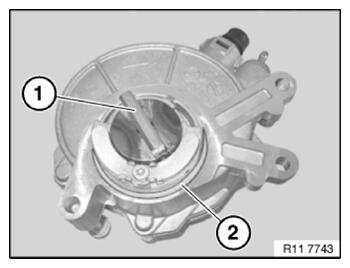

Replace O-ring
(2)
.
Parts:
O-ring
Wet the O-ring slightly with engine oil,
Twist the drive
(1)
of the vacuum pump before assembly in the installation position.
Courtesy of BMW OF NORTH AMERICA, INC.
