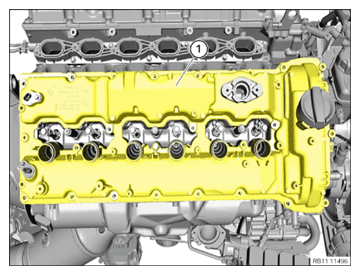

Installing the cylinder head cover on the right
Screw connection of the cylinder head cover on right

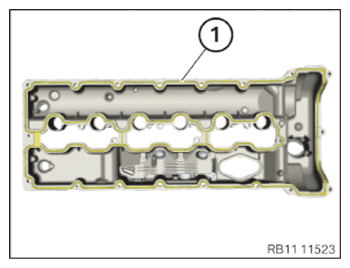

- Replace profile seal (1)
of cylinder head cover.
Parts: Profile seal
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Clean sealing surface (1) .
- Replace the seal (2)
.
Parts: Gasket
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) . - Install the sealant (1)
on the special tool 2 469 803
as shown.
Parts: Sealing compound
SEALING COMPOUND DESCRIPTIONLoctite 5970 liquid sealing compound Processing time <10 minutes at room temperature 50 ml, Cartridge 83190404517 - On the contact points on the left and right on the timing case cover, thinly apply the sealing compound.
- Position the cylinder head cover (1)
.

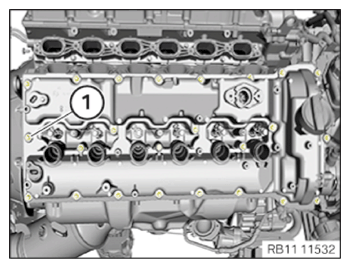

- Screw in screw (1)
but do not yet tighten.

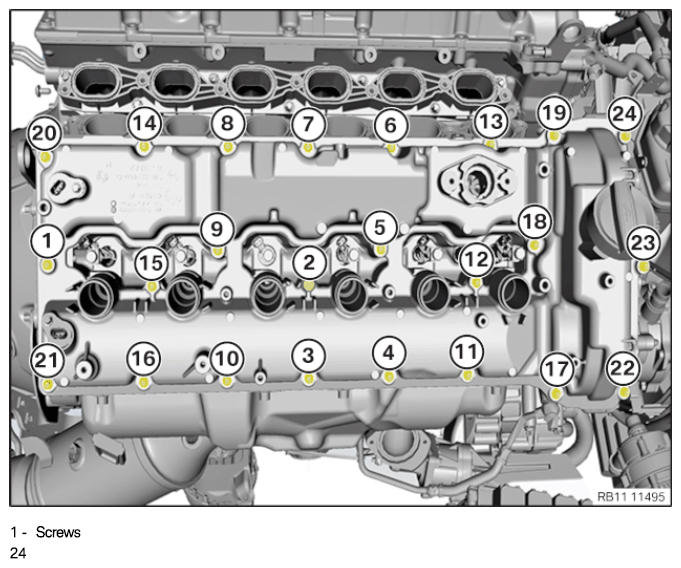

- Tighten the screws of the cylinder head cover in the sequence (1)
to (24)
.TIGHTENING TORQUE SPECIFICATIONS
Cylinder head cover, right to cylinder head M6x30 Tighten all screws in the order 1 to 24. 10 Nm M6x40 Tighten all screws in the order 1 to 24. 10 Nm - Position the guide tube for the oil dipstick (2) on the cylinder head cover.
- Tighten the screw (1) on the guide tube for the oil dipstick.
TIGHTENING TORQUE SPECIFICATIONS
| Guide tube for oil dipstick to cylinder head cover | ||
| M8x16 | Tightening torque | 18 Nm |
Follow-up work
- Refer to FASTENING THE COOLANT FEED LINE FOR THE RIGHT EXHAUST TURBOCHARGER .
- Refer to CONNECTING THE COOLANT HOSE TO THE RADIATOR .
- Refer to INSTALLING THE CENTER TOP CROSS CONNECTION .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to PREPARING THE INJECTOR FOR INSTALLATION .
- Refer to INSTALLING INJECTORS .
- Refer to INSTALLING RIGHT HIGH PRESSURE PUMP .
- Refer to INSTALLING THE RIGHT HIGH-PRESSURE RAIL .
- Refer to INSTALLING ALL HIGH PRESSURE LINES BETWEEN THE RAIL AND THE INJECTORS .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING THE HIGH-PRESSURE LINE ON THE RIGHT BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR PIPE .
- Refer to INSTALLING TOP RIGHT CLEAN AIR PIPE .
- Refer to PARTIALLY FASTENING THE WIRING HARNESS ON THE RIGHT CYLINDER HEAD COVER .
- Refer to CONNECTING ALL THE CONNECTORS TO THE DME CONTROL UNIT FOR CYLINDERS 1 TO 6 AND TO THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to INSTALLING THE IGNITION COILS .
- Refer to INSTALLING THE RIGHT-HAND VENTILATION LINE .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT LINE .
- Refer to INSTALLING THE ENGINE VENTILATION LINE ON THE INTAKE SYSTEM .
- Refer to MOUNTING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE LEFT THROTTLE BODY .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to MOUNTING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE RIGHT THROTTLE BODY .
- Refer to INSTALLING RIGHT AIR DUCT .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to FILLING THE COOLING SYSTEM WITH THE VACUUM FILLING UNIT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
