Installing coolant pumps

• If replacing the coolant pump: Remount the thermostat.

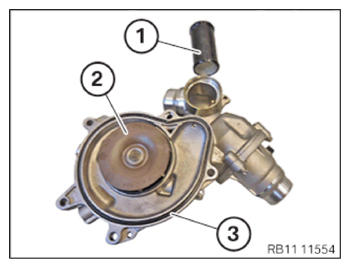

• Replace the coolant pipe (1) of the coolant pump (2).

  Parts:  Coolant pipe

• Replace the seal (3) of the coolant pump (2).

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

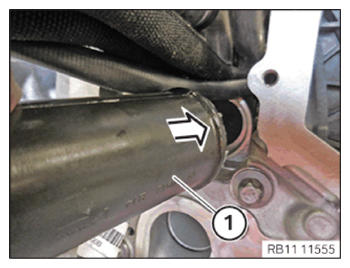

• Ensure a correct installation position of the coolant pipe (1) and install the coolant pipe (1) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position coolant pump (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1) and the nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Coolant pump to timing case
  M6	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Coolant pump to timing case
  M6	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Coolant pump to timing case
  M6	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the coolant hose (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the coolant hose (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the coolant hose (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Coolant line to thermostat housing
  M6x25	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
