Remove the coolant expansion tank for the low-temperature coolant circuit
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Disconnect tool
Use standard disconnection tools to disconnect the coolant hoses or vacuum lines.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Open the lid (1) on the coolant expansion tank for the low-temperature coolant circuit.
- Draw the coolant off with a conventional pump.

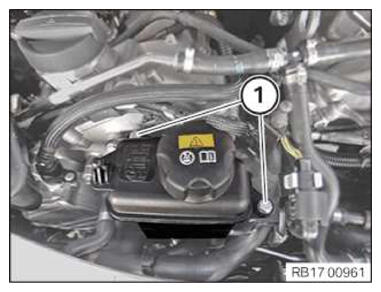

- Loosen screws (1).
NOTE:
TECHNICAL INFORMATION
Use commercially available pinch-off tools to pinch off the coolant hoses.
Use commercially available pinch-off tools to pinch off the coolant hoses.

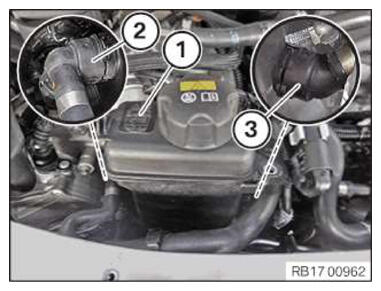

- Raise the coolant expansion tank (1) slightly until the coolant hoses (2) and (3) are accessible.
- Disconnect the coolant hoses (2) and (3) with conventional disconnection tools.
- If fitted: Unlock the coolant hose (2) and detach it from the coolant expansion tank.
- Unlock the coolant hose (3) and detach it off the coolant expansion tank.
NOTE:
TECHNICAL INFORMATION
Use commercially available pinch-off tools to pinch off the coolant hoses.
Use commercially available pinch-off tools to pinch off the coolant hoses.

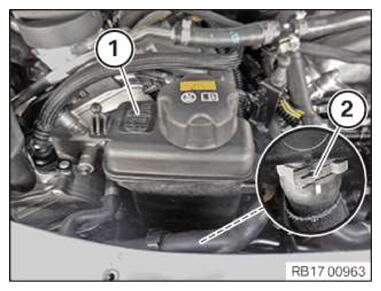

- Raise the coolant expansion tank (1) slightly until the coolant hose below the coolant expansion tank is accessible.
- Disconnect the coolant hose below the coolant expansion tank with conventional disconnection tools.
- Release the spring strap clamp (2) and detach the coolant hose.
- Thread out coolant expansion tank (1) and remove.
