41 14 Wheel Wells
>>
41 14 505 REPLACE THE REAR LEFT OUTER WHEEL ARCH SECTION (SIDE PANEL DETACHED) (740e xDrive PHEV 2017-2019, 745e xDrive PHEV 2020-2022)
>>
Removing The Rear Outer Wheel Arch Section
Removing The Rear Outer Wheel Arch Section

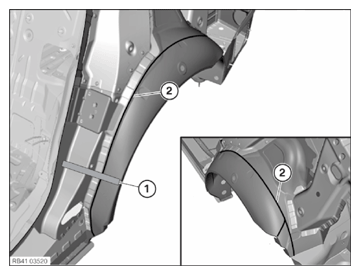

Remove the cavity sealing
(1)
.
Mark and make the separating cut
(2)
as shown.
Remove the separated section of the outer wheel arch section.
Courtesy of BMW OF NORTH AMERICA, INC.
