Removing The Left Luggage Compartment Floor

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections

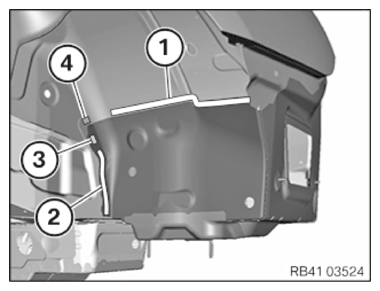

• Open welded connections in area (1)  .
• Loosen self-tapping screws and bonded connection in the area (2)  .
• Release the bonded rivet connection in area (3)  .
• Release the welded connection in area (4)  from the inside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open welded connections in area (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Shown without side panel.
• Release the spot-welded adhesive joints in area (1)  .
• Release the bonded rivet connection in area (2)  and remove the luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.
