Replacing rear air conditioning control unit

Preliminary work

• Refer to REMOVING THE TRIM PANEL FOR THE LUGGAGE COMPARTMENT PARTITION WALL (REAR AIR CONDITIONING) .

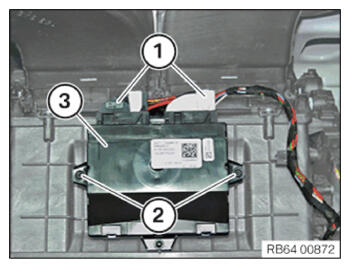

• Unlock and disconnect connector (1).
• Loosen the screws (2) and remove the control unit (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the control unit (3) and tighten the screws (2).
• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM PANEL FOR THE LUGGAGE COMPARTMENT PARTITION WALL (REAR AIR CONDITIONING) .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
