61 31 172 Removing and installing/replacing switch for electromechanical parking brake (manual transmission)

Necessary preliminary work:

• Remove center console cover. See 51 16 160 REMOVING AND INSTALLING/REPLACING CENTER CONSOLE COVER .

Release screws (3).

Remove switch for electromechanical parking brake (1) from center console cover (2).

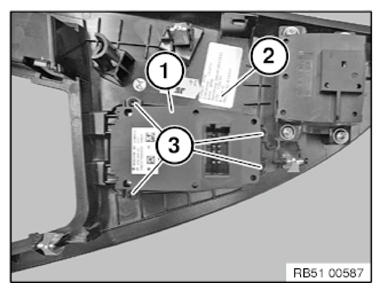

Fig 1: Identifying Electromechanical Parking Brake, Center Console Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
