61 31 078 Removing and installing/replacing switch for convertible top operation

Necessary preliminary work:

• Remove center console cover. See 51 16 160 REMOVING AND INSTALLING/REPLACING CENTER CONSOLE COVER .

Variant overview of center console cover (3):

1. Automatic transmission
2. Manual gearbox

Release screws (1).

Remove switch for soft top activation (2) from center console cover (3).

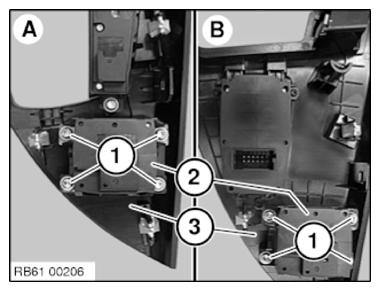

Fig 1: Identifying Center Console Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.
