11 28 050 Replacing A/C compressor drive belt with belt tensioner (N63O1)

IMPORTANT: Risk of damage!
Release screws (1) on vibration absorber only if removal position is adjusted.
If contaminated with hydraulic fluid: Replace drive belt.
Crank engine at central bolt in direction of engine rotation.

Installation note:

If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of rotation.

Necessary preliminary work:

Remove DRIVE BELT for alternator.

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow in illustration) is reached on vibration absorber.

Release screws (1).

Tightening torque 11 28 2AZ .

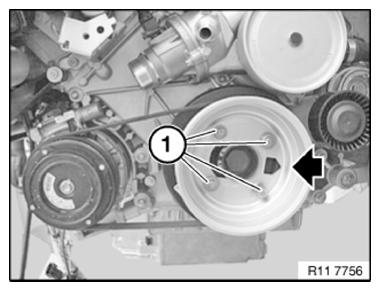

Fig 1: Identifying Screws And Marking On Vibration Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Belt pulley is pretensioned.
Belt pulley tension is relieved abruptly during the cranking process!

NOTE: Observe direction of engine rotation.

Crank engine at central bolt until marking (see arrow in illustration) is reached on vibration absorber.

Remove elasto-belt.

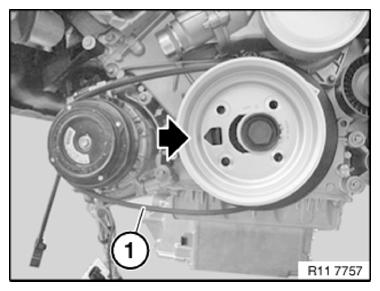

Fig 2: Identifying Vibration Absorber In Position To Remove Elasto-Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
