51 13 116 Removing and installing/replacing cowl panel cover

Necessary preliminary work:

Lever out expanding rivet (1) on cover (2) on left/right.

Remove cover (2).

Installation note:

Replace damaged expanding rivets (1).

Make sure holders (3) are correctly seated.

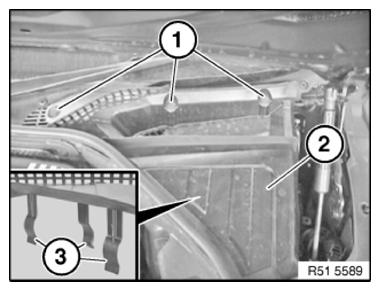

Fig 1: Identifying Expanding Rivet On Cover And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Turn clamp (3) in the direction of the arrow and washer fluid line (2) in the direction of the arrow.

Disconnect plug connection (1) and remove from holder (4).

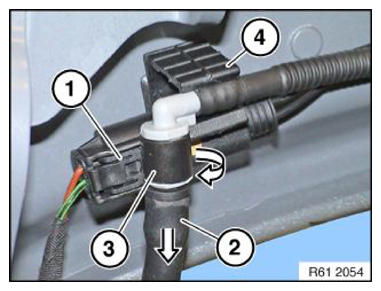

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release expanding rivet (1) on left/right.

Turn snap fastener (2) approx. 90° counterclockwise.

Remove cowl panel cover (3) in upwards direction.

Installation note:

Replace damaged expanding rivets (1).

Check cover (3) for correct fit.

Close snap fasteners (2) from the middle.

The fastener is closed if the arrow tips point to each other.

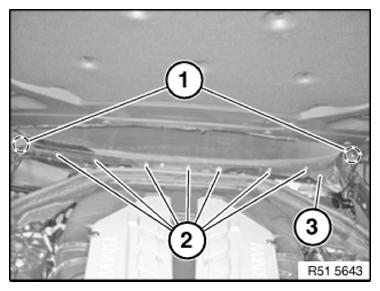

Fig 3: Identifying Expanding Rivet And Snap Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.
