51 13 001 Removing and installing/replacing front radiator grille, middle left or right

Necessary preliminary work:

Version with night vision:

Release camera fixing screw (1) and remove.

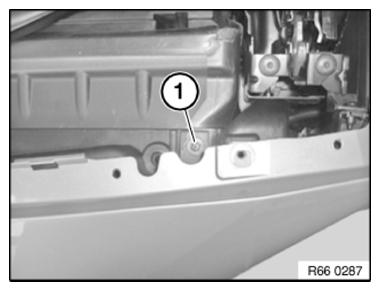

Fig 1: Identifying Camera Fixing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press middle front radiator grille (1) upwards and pull in direction of arrow towards front.

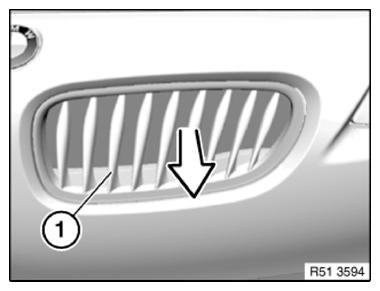

Fig 2: Pressing Front Radiator Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Version with night vision:

Release plug connection (2) and high-pressure nozzle line (3) on night vision camera (1) and disconnect.

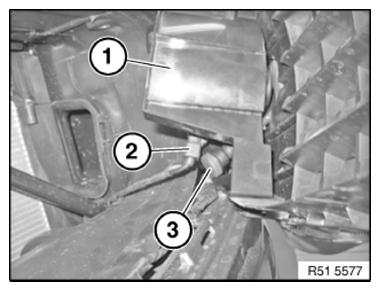

Fig 3: Identifying Plug Connection And High Pressure Nozzle Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All catches and guides on middle front radiator grille must not be damaged.

Press on chrome ring to push front radiator grille (2) into bumper trim.

Fixtures (1) must engage correctly.

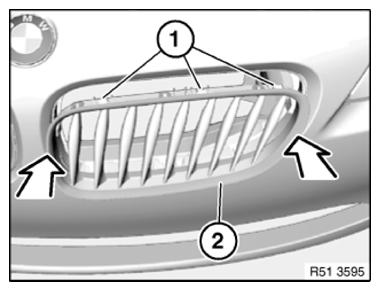

Fig 4: Pushing Front Radiator Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove NIGHT VISION CAMERA .
