51 11 055 Removing and installing/replacing support for front bottom bumper panel

Necessary preliminary tasks:

• Remove front bumper panel. See 51 11 156 REMOVING AND INSTALLING (REPLACING) FRONT BUMPER PANEL .

Version with ACC:

Drill out blind rivet (1).

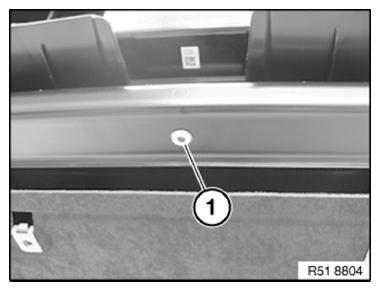

Fig 1: Identifying Blind Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Undo bolts (2) on left and right on cross-member (1).

Tightening torque 51 11 5AZ .

Remove carrier (1).

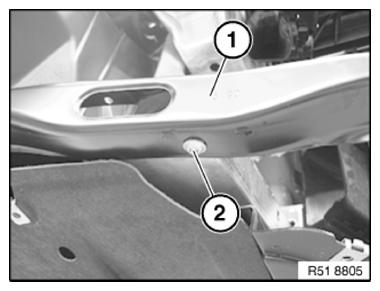

Fig 2: Identifying Carrier And Bolts On Crossmember

Courtesy of BMW OF NORTH AMERICA, INC.
