51 14 001 Replacing the front BMW badge Special tools required

00 9 327

IMPORTANT: The notes on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail. See 51 00... NOTES ON COMPONENT BONDING ADHESIVE TAPE .

Tape off working area around the BMW badge (1) with adhesive tape.

Carefully warm up the BMW badge (1) with a hot air blower (temperature approx. 40 - 55°C) and lift it out with the special tool 00 9 327 .

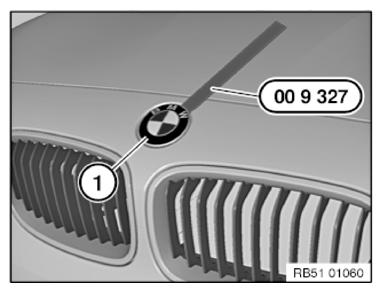

Fig 1: Identifying Special Tool 00 9 327

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pull liner* off adhesive tape (2).

Position BMW badge (1) over guides (3) and press down firmly.

* Liner is the protective film on a new plate.

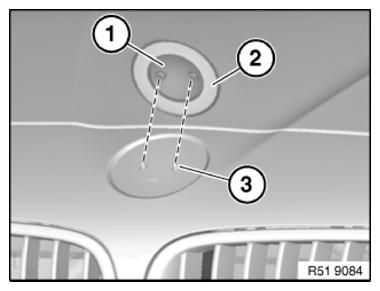

Fig 2: Identifying Adhesive Tape And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
