63 17 070 Removing and installing/replacing left fog light
IMPORTANT:
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS)
NOTE:
The time value of this job item does not include adjustment of the fog lights!
Necessary preliminary tasks:
For equipment specification with auxiliary radiator:
- Remove front bumper panel. See 51 11 156 REMOVING AND INSTALLING (REPLACING) FRONT BUMPER PANEL .
All other equipment specifications:
- Remove front wheel arch cover. See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) .
- Remove brake air duct.

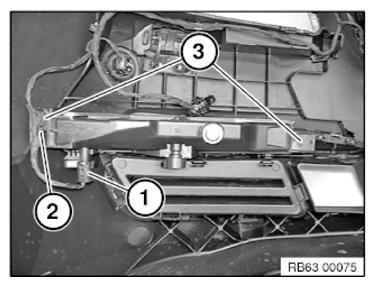

Unfasten plug connection (1) and disconnect.
Remove cable clip (2).
Release screws (3).
Tightening torque 63 12 7AZ .
Remove fog lamp.
On replacement of fog light or bumper panel at front:
