51 45... Removing and installing/replacing side panel on dashboard on left or right

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Pull off sealing (1) in the area of the dashboard side panel (2).

Unclip side panel from dashboard (2) in direction of arrow with special tool 00 9 325 and feed out at a slant to the rear.

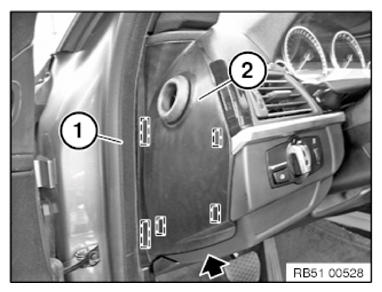

Fig 1: Locating Dashboard Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (2) and guide tab (3) of side panel on dashboard (1) must not be damaged or missing.

Replacement

Modify retaining clips (2).

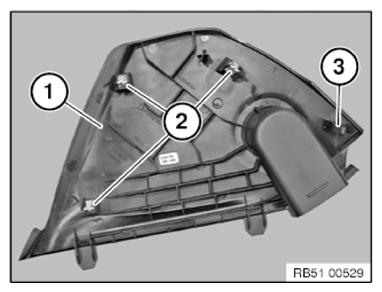

Fig 2: Identifying Retaining Clips And Guide Tab

Courtesy of BMW OF NORTH AMERICA, INC.
