51 11... Removing and installing/replacing chrome strip in bumper panel (side)

Special tools required:

• 64 1 020

Necessary preliminary work:

Remove front bumper panel. See 51 11 156 REMOVING AND INSTALLING (REPLACING) FRONT BUMPER PANEL .

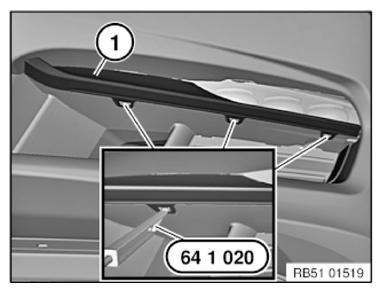

Release all retaining lugs on chrome strip (1) with special tool 64 1 020 .

Fig 1: Removing Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

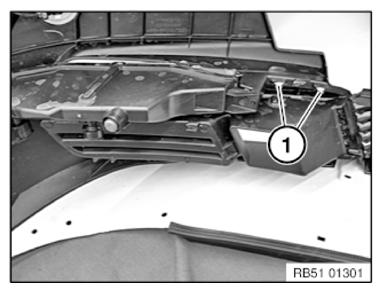

Release latch mechanisms (1) and remove chrome strip towards front.

Fig 2: Identifying Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

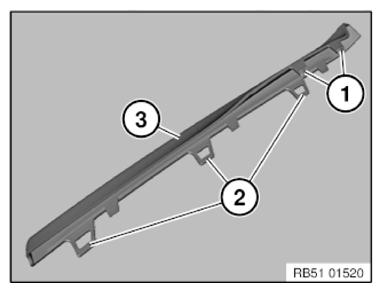

Retaining lugs (1) and (2) on chrome strip (3) must not be damaged or missing.

Fig 3: Identifying Retaining Lugs And Strip

Courtesy of BMW OF NORTH AMERICA, INC.
