35 40 001 Removing and installing or replacing accelerator pedal module

Take off protective cap.

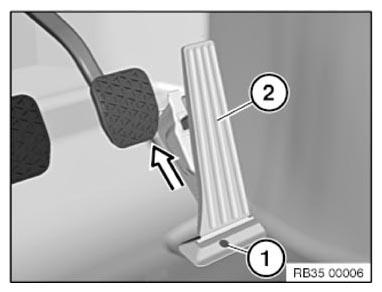

Release screw (1).

Pull the accelerator pedal module (2) upwards out of bracket.

Installation note:

Tightening torque: 35 40 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connector (1).

Remove accelerator pedal module.

Courtesy of BMW OF NORTH AMERICA, INC.
