33 41... Detaching wheel bearing inner ring from drive flange (drive flange removed)

Special tools required:

• 33 4 409
• 33 4 405
• 33 4 401
• 33 4 403
• 33 4 404
• 33 4 402
• 33 4 400

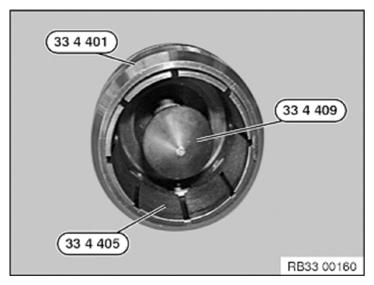

Insert special tool 33 4 405 into special tool 33 4 401.

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 33 4 401 in conjunction with 33 4 405 on drive flange.

Courtesy of BMW OF NORTH AMERICA, INC.

Tension special tool 33 4 401 with spanners 33 4 403 and 33 4 404 together until special tool is resting against wheel bearing inner ring.

Unscrew spindle 33 4 402 as far as is possible.

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool  (available via the applicable BMW workshop equipment catalogue).

• Hydraulic unit - 81 64 2 155 744
• Adapter kit 1 - 81 64 2 155 745
• Adapter kit 2 - 81 64 2 155 746

The following work steps describe pulling off the wheel bearing inner ring:

Courtesy of BMW OF NORTH AMERICA, INC.

• Pressure cylinder of hydraulic unit (1) must be in the initial position.
• Spindle F3 must terminate flush with hydraulic unit (1).
• Assemble special tool, see illustration
• Turn spindle of special tool 33 4 400 as far as it will go.

The following tools are required for detachment, consult illustration for arrangement:

Vehicle components:

I	Drive flange hub
II	Wheel bearing inner ring

Required components for all models and types:

F3	Spindle M24 (length 270 mm)
1	Hydraulic unit
E3	Washer M24
C1	Holding sleeve
B1	Adapter
33	4 400 Special tool

* Components specific to model and type:

K3	Screws M12 x 1.5
