65 13 188 Removing and installing/replacing rear mid-range speaker (in storage shelf)

Special tools required:

• 00 9 327

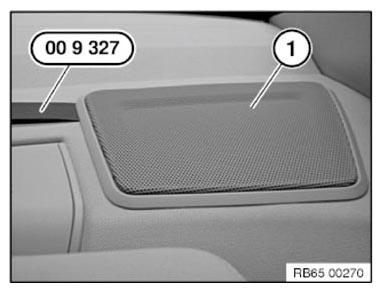

Lever out speaker cover (1) with special tool 00 9 327.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

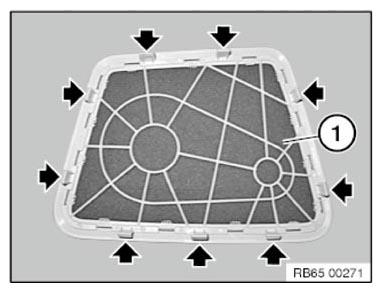

Retaining lugs on speaker cover (1) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

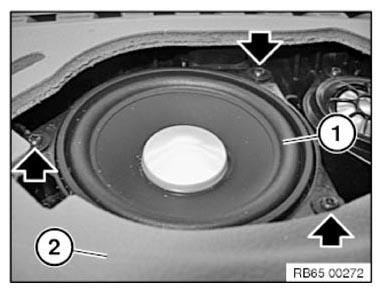

Release screws.

Remove mid-range speaker (1) from storage shelf (2) and disconnected associated plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.
