51 71 373 Removing and installing/replacing tension strut on spring strut dome

Driving without the tension strut is prohibited.

Necessary preliminary work:

• Remove the CARBON STRUT

Removal:

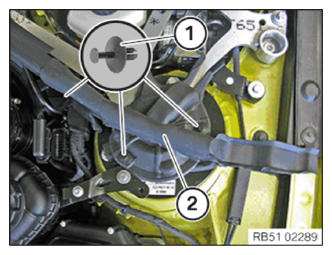

Release the expanding rivet (1).

Place the sealing (2) back.

Courtesy of BMW OF NORTH AMERICA, INC.

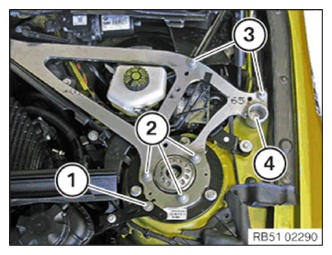

Release the screw (1) and remove the holder for the expansion tank from the tension strut.

Release the screws (2 to 4).

Courtesy of BMW OF NORTH AMERICA, INC.

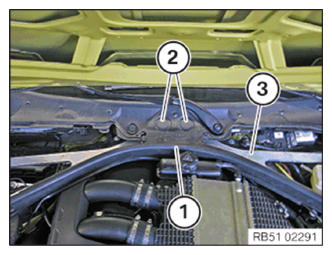

Pull off the seal (1).

Release the covers (2) and release the screws below.

Remove the tension strut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert the tension strut (3).

Tighten the screws under the covers (2).

Tightening torque: 51 61 15AZ .

Parts:  Replace the screws.

Install the covers (2).

Attach the seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach the holder for the expansion tank on the tension strut and secure it with the screw (1).

Tighten the screws (2 to 4).

I Screws (2)	Tightening torque: 51 61 13AZ
Screws (3)	Tightening torque: 51 61 16AZ .
Screw (4)	Tightening torque: 51 61 14AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach the sealing (2) and secure it with the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Attach the CARBON STRUT
