51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

Necessary preliminary tasks:

• Remove right FRONT DOOR SILL COVER STRIP (INNER)
• Remove right DASHBOARD TRIM AT BOTTOM

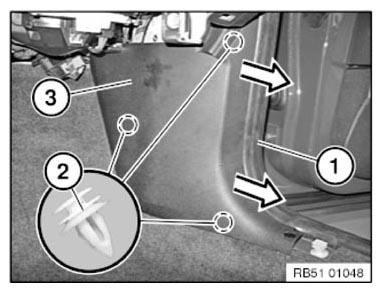

Detach edge protection (1) in area of side trim panel (3).

Pull side trim panel (3) off clips (2) in direction of arrow.

Loosen clips (2) from body and insert in side trim panel (3).

Installation note:

Make sure edge protection (1) is CORRECTLY SEATED .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) for side trim panel (2) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
