51 41 018 Replacing speaker cover on left or right front door trim panel

Special tools required:

• 00 9 327

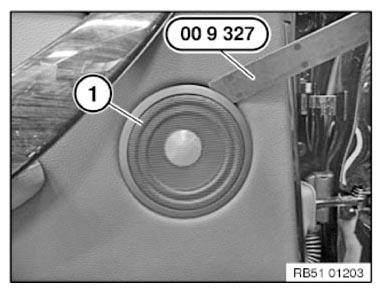

Unclip speaker cover (1) from door trim panel with special tool 00 9 327.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

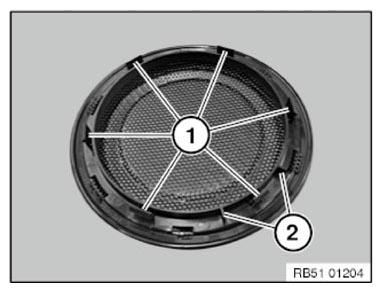

Catches (1) and guides (2) must not be damaged or missing.

Guides (2) are used for correct positioning of speaker cover on door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
