51 13 001 Removing and installing/replacing front radiator grille, middle left or right

Necessary preliminary tasks:

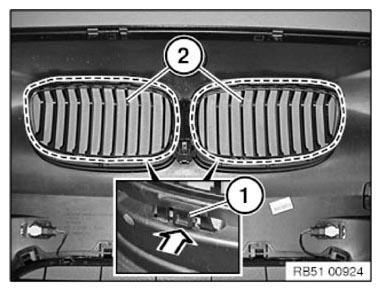

Release all retainers (1).

Remove front radiator grille (2) towards front.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All catch mechanisms and guides on the front radiator grille (2) may be neither damaged or missing.

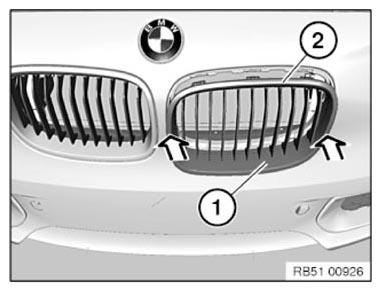

Press on chrome ring to push front radiator grille (1) into bumper trim.

Fixtures must be correctly locked.

Courtesy of BMW OF NORTH AMERICA, INC.
