51 11 183 Removing and installing (replacing) ornamental grille for bumper panel (side)
Necessary preliminary work:
- Remove FRONT BUMPER PANEL

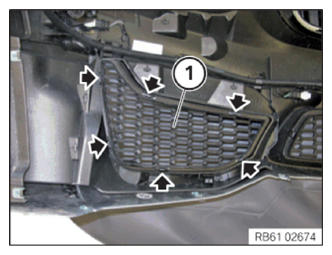

Release the ornamental grille (1) at the latch mechanisms.
Remove the ornamental grille (1).
Installation note:
Latch mechanisms must not be damaged or missing.
