52 26 412 Replacing backrest cover for right rear seat

Special tools required:

• 64 1 020
• 52 0 050

Necessary preliminary tasks:

• Remove RIGHT BACKREST

Release screw (1).

Tightening torque: 52 26 03AZ .

Remove outer mount (2).

Installation note:

Replace screw.

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out cover (1) from backrest with special tool 64 1 020.

Courtesy of BMW OF NORTH AMERICA, INC.

Lever welt surrounding from backrest frame using special tool 64 1 020.

Remove backrest cover with padding from backrest frame.

Installation note:

Insert the rear panel in the backrest frame first.

Press the welt from the backrest cover into the frame.

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

• Separate all clamps on trim wires
• Remove cover from upholstery
• Remove remaining clamps from cover and upholstery

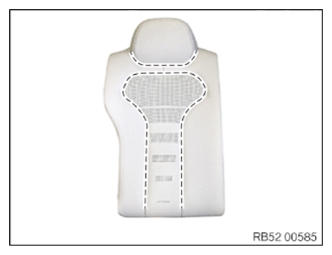

Replacing cover:

• Remove all trim wires from cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into cover pockets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamp (2) with special tool 52 0 050.

In so doing, enclose wire in padding and trim wire of cover and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in seat cover
5. Backrest cover

   Courtesy of BMW OF NORTH AMERICA, INC.
