52 26 400 Replacing seat cover for rear seat

Special tools required:

• 52 0 050

Necessary preliminary tasks:

• Remove REAR SEAT

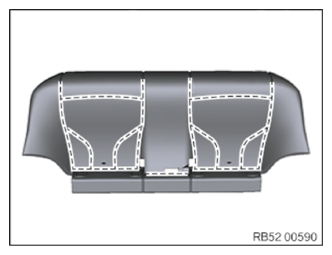

Unclip ISOFIX cover cap.

Installation note:

Pull cover straps through foam part into Isofix openings.

Make sure Isofix protective caps are correctly engaged.

Courtesy of BMW OF NORTH AMERICA, INC.

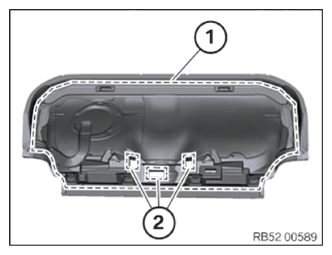

Lever out welt in area (1) with plastic wedge.

Unhook seat cover in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

• Release all clamps on trim wires.
• Remove seat cover from upholstery
• Remove remaining clamps from cover and upholstery

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert new clamps with special tool 52 0 050.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in seat cover
5. Seat cover

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

• Push trim wires into new seat cover
• If necessary, cut in mounting for trim wires of new cover

Courtesy of BMW OF NORTH AMERICA, INC.
