52 16 040 Removing and installing/replacing outer cover on left or right front seat (electric)

Move backrest to full rearward position.

Grip end fitting cover centrally between seat belt strap and cover.

Unclip end fitting cover in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

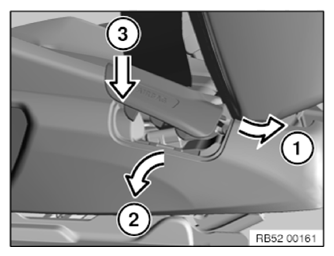

Installation note:

Install end fitting cover as follows:

1. Insert cover with rear guide in covering.
2. Insert cover in direction of arrow downwards in covering
3. Engage top left of cover in covering.

Courtesy of BMW OF NORTH AMERICA, INC.

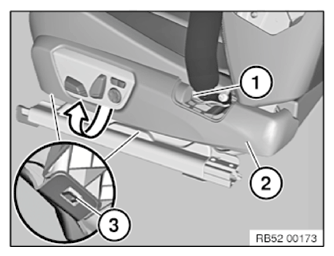

Release screw (1).

Lever latch mechanism (3) of the cover (2) out of seat mechanism.

Remove cover (2) in direction of arrow from seat mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release wiring harness at clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove OPERATING UNIT for seat adjustment from cover.
