52 15 001 Removing and installing front seat, driver's side

Necessary preliminary work:

CAUTION: The side airbag is integrated in the front seat.
Improper handling may trigger the side airbag and as a result cause injuries.

Front seat, manual:

Move backrest to full rearward position.

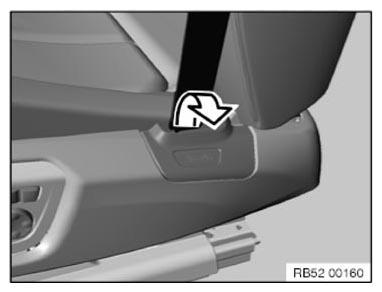

Grip end fitting cover in marked area between cushion and cover.

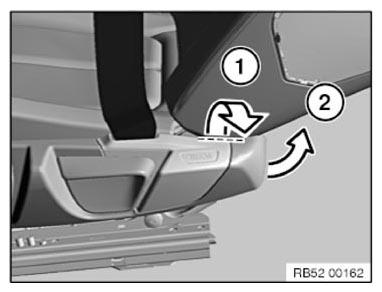

Unclip the end fitting trim in direction of arrow (1). Feed out end fitting cover (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Front seat, electric:

Move backrest to full rearward position.

Grip end fitting cover centrally between seat belt strap and cover.

Unclip end fitting trim in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 72 11 02AZ .

Remove end fitting.

Installation note:

End fitting is coded against incorrect assembly.

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust front seat fully backwards and down.

Release screws (1).

Installation note:

Replace screws.

Tightening torque: 52 10 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust front seat fully forwards and up.

Release screws (1).

Installation note:

Replace screws.

Tightening torque: 52 10 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1).

CAUTION: Cover entrances with protective covers (risk of damage!)

Carefully lift out front seat with the assistance of a second person.

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: When carrying out further work on the front seat, it is absolutely imperative to observe the SAFETY INFORMATION ON HANDLING AIRBAG MODULES AND PYROTECHNICAL SEAT BELT TENSIONERS
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Installation note:

Carpet must not get between seat rails and floor panel in area of attachment points (groaning noises)
Insert all screws loose to avoid twisting
Replace all screws and tighten to the specified torque
Tightening torque: 52 10 1AZ .
