66 33 010 Removing and installing/replacing ultrasonic sensors for Parking Maneuvering Assistant
Necessary preliminary tasks:
- Partially remove WHEEL ARCH COVER, FRONT LEFT OR RIGHT

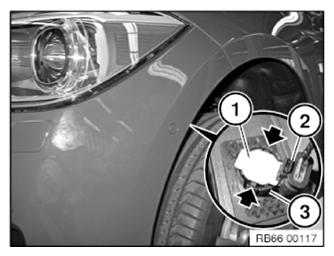

Unfasten plug connection (2) and disconnect.
Unlock latch mechanisms where marked and pull ultrasonic sensor (1) out of bracket (3).
Installation note:
Latch mechanisms must not be damaged or missing.
Make sure ultrasonic sensor is seated securely!
