41 12 654 Replacing Right Luggage Compartment Floor (Rear Side Panel And Tail Panel Removed)

Read contents of BODY, GENERAL .

Use only approved SPOT-WELDING APPARATUS  for repairs.

The following new body parts are required (see the applicable BMW parts catalogue):

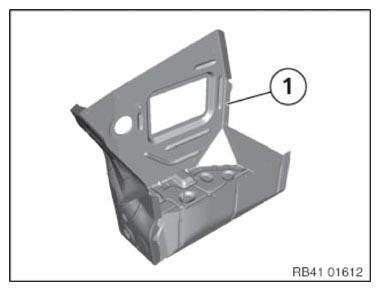

• (1) Luggage compartment floor, right

  Courtesy of BROWN, BOVERI & CO., LTD.

Removal

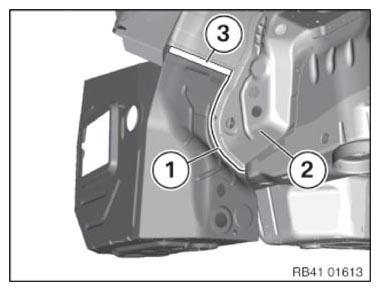

Mark severance cut (1) next to reinforcement (2) and disconnect.

Open welded connections in area (3).

Courtesy of BROWN, BOVERI & CO., LTD.

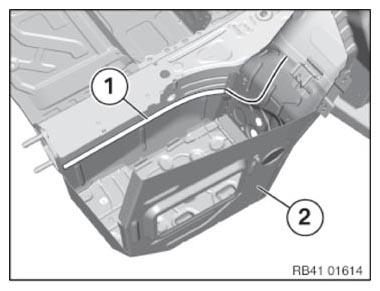

Open welded connections in area (1).

Remove the luggage compartment floor.

Courtesy of BROWN, BOVERI & CO., LTD.

New part preparation

Mark severance cut on luggage compartment floor in accordance with severance cut on vehicle + 15 mm for extra material and cut.

Adjust luggage compartment floor in combination with side panel and tail panel to fit.

Prepare luggage compartment floor for joining by welding.

Installation

Install new part and weld.
