41 35 081 Removing And Installing Front Side Panel On Left

Observe 41 00... BODY GAP DIMENSIONS .

Necessary preliminary tasks:

• Remove TRIM PANEL FOR COVER ON SIDE MEMBER
• Release BUMPER PANEL at the side in the area of the wheel arch cover

Lever out expanding rivets (1).

Release latch mechanism (2) and remove cover (3).

Courtesy of BROWN, BOVERI & CO., LTD.

Courtesy of BROWN, BOVERI & CO., LTD.

Loosen screws and remove side wall.

Tightening torque: 41 35 1AZ .

Replacement:

• Apply additional sealant to inside of front panel in area (1) analogous with series.

  Material: SEALANT D1 .

• Remount holder (2).

Courtesy of BROWN, BOVERI & CO., LTD.

For replacement,  only national-market version Japan:

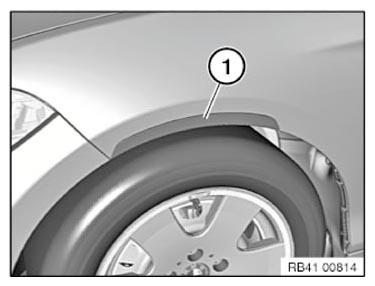

Replace wheel arch trim (1).
