41 14 505 Replacing Rear Left Outer Wheel Arch Section (Rear Side Panel Removed)
Read contents of BODY, GENERAL .
IMPORTANT:
Follow procedure for REPAIR STAGE 2 .
The following new body parts are required (see the applicable BMW parts catalogue):
The following new body parts are required (see the applicable BMW parts catalogue):

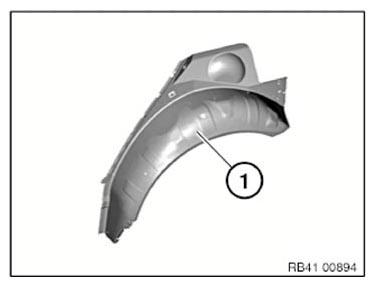

- (1) Outer wheel arch section, rear
- (2) Shaped part attachment, entrance, outside (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivets N3 | 12 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
Removal of wheel arch outside part

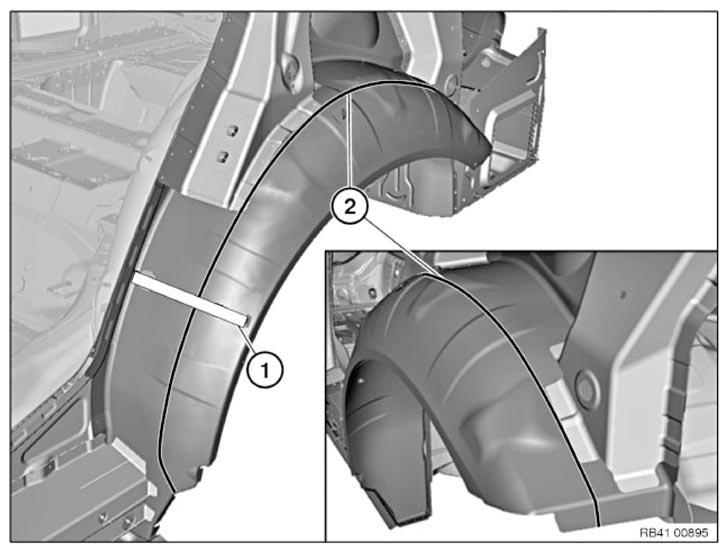

Remove cavity sealing (1).
Mark severance cut (2) as pictured and cut.
Remove part of the outer wheel arch section.
Preparation of new part:
Mark severance cut on new part according to severance cut on vehicle + 20 mm material extra and cut.
Adjust new parts in combination with side wall to fit and secure.

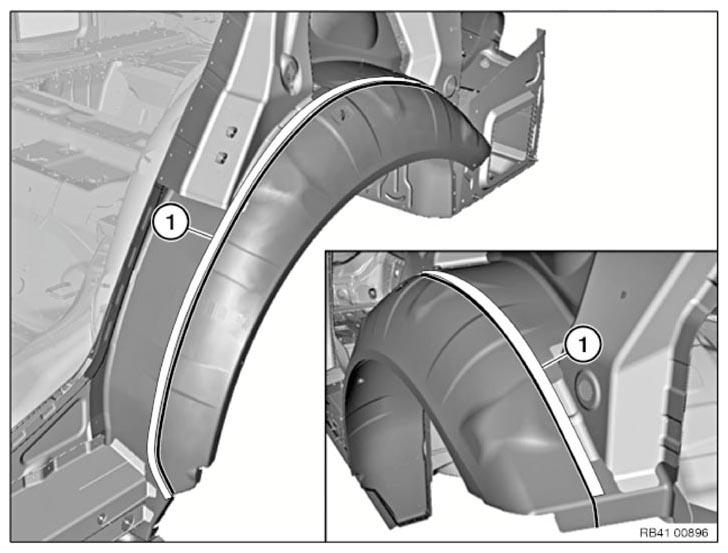

In area of bonding surface (1), drill 12 0 4.2 mm holes for blind rivets.
Installation of wheel arch outside part
IMPORTANT:
Do not grind/sand new part in area of bonding surfaces.
Clean all bonding surfaces on new part and on vehicle with CLEANING AGENT R1 .
Apply adhesive to bonding surfaces.
Apply sealant to new CAVITY ACOUSTIC BAFFLE .
Install and rivet outer wheel arch section.
