REP-TAT-P-3411-15 Overhauling brake caliper, front
- Do not grip brake piston (2) with fingers - pinch hazard!

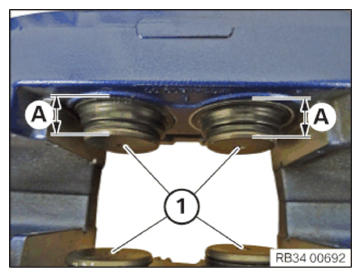

- Push out all brake pistons (1) where dimension A= 20 mm.
- To protect the brake piston, set a protective plate (1) (for example made of hardwood or rubber) in the brake caliper housing.
NOTE:
The description is for one component only. The procedure is identical for all further components.

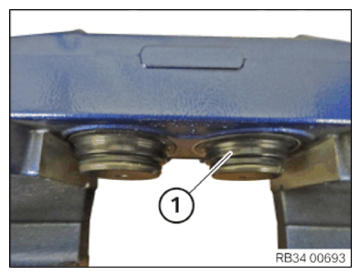

- Press the dust boot (1) shut.
- Clean the brake pistons (1) and dry with compressed air.
- Check the brake piston (1) and flange surfaces for damage and replace the brake caliper if applicable.
Work on cylinders and brake pistons that removes material is not permitted.
- Place the dust boot (1) on the brake piston (3).

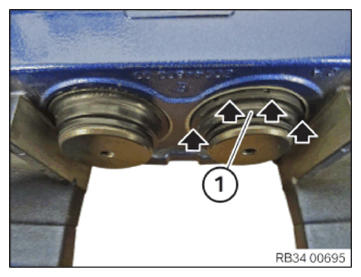

- Evenly press the dust boot (1) in into the brake caliper housing in arrow direction.
- To ensure that the dust boot fits perfectly: keep the area between the dust boot and brake caliper housing dry.
The area between the dust boot and the brake caliper housing may not come into contact with lubricating grease or brake fluid.

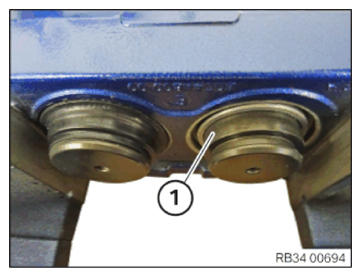

- Make sure the dust boot is correctly inserted in the annular groove (1) and in the brake caliper housing (2).
