34 11 280 Removing and installing/replacing front left protective plate

Necessary preliminary work:

• Remove front BRAKE DISCS .

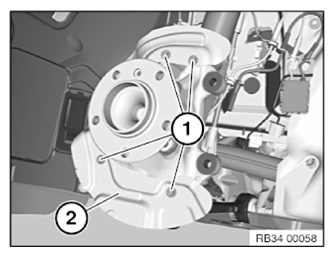

Release screws (1) and remove brake guard plate (2).

Installation note:

Tightening torque: 34 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.
