REP-TAT-P-5145-02 Installing the bottom right instrument panel trim

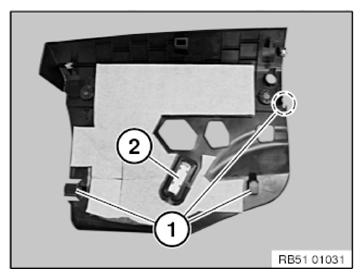

Check the guides (1) for damage, if necessary, replace the instrument panel trim (2).
Connect the footwell light connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the instrument panel trim (2) in this area (A) behind the center console.
Clip in the clips (3) at the instrument panel towards the top.
Tighten the screw connections (1).
Dashboard trim panel at bottom on support, tightening torque: 4.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
