51 34 191 Replacing left or right fixed door window in rear window frame

Special tools required:

• 51 3 220

Attention!

The following notes form the basis for these repair instructions and must be adhered to at all times:

• Refer to 4100 INFORMATION ON VEHICLE PROTECTION
• Refer to 5131... MATERIALS FOR BONDING WINDOW
• Refer to 62 30 HEAD-UP DISPLAY
• Refer to 4100 SAFETY AT WORK
• Refer to 9900... TOUCHING UP PAINTWORK DAMAGE
• Refer to GENERAL PROCEDURE  to dismantle/install bonded window glass

The following new parts/CONSUMABLES  are required (available via the applicable BMW parts catalogue). .

Material	Quantity
Fixed side window glass	1
Small repair kit	1
Cutting wire	1

Necessary preliminary tasks:

• Remove COVER FOR WINDOW GUIDE
• Remove RUBBER WINDOW SEAL FOR DOOR WINDOW  in area of fixed door window.

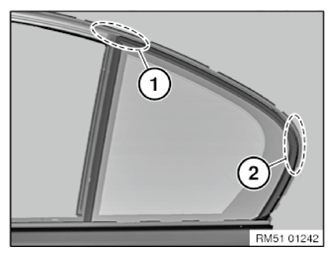

To avoid damage, the door must be taped off with yellow plastic adhesive tape in area (1 and 2).

1. Outer
2. Inside and outside

   Courtesy of BMW OF NORTH AMERICA, INC.

Slide cutting wire (1) through adhesive bead above latch mechanism (2).

Sever adhesive bead in direction of arrow up to area (A), pulling outward.

Courtesy of BMW OF NORTH AMERICA, INC.

Lay the cutting wire (1) at the top behind the PVC coating (2) and feed it in behind the spacer (3) if possible.

Sever the adhesive bead up to area (A), pulling from the inside only.

Courtesy of BMW OF NORTH AMERICA, INC.

Lay cutting wire (1) at the bottom behind PVC coating (2) and press underneath spacer (3).

Sever remaining adhesive bead and remove door window.

Courtesy of BMW OF NORTH AMERICA, INC.

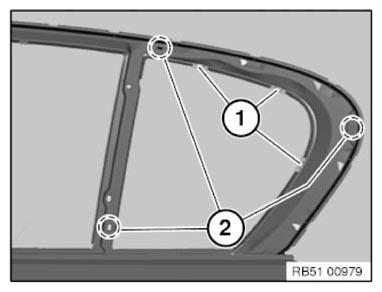

Replace faulty clamps (1).

Remove remnants frame in the areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Overview for taping of door window

Courtesy of BMW OF NORTH AMERICA, INC.

Position (1) corresponds to bead joint.

Cut	A-A
a  [mm] = Position adhesive bead	1 +1/along frame contour
b  [mm] = Width adhesive bead	8 ± 1
h  [mm] = Height adhesive bead	15 ± 2

Attention!

In the marked area, the adhesive bead does not  follow the contour of the frame.

	F20	F30/F35/F80
a1	6 +1 mm	2 +1 mm
a2	8 +1 mm	4 +1 mm

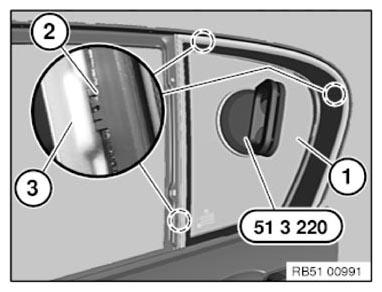

Carefully insert door window (1) with special tool 51 3 220 at bottom first, align sideways and insert latch mechanisms (2) in mountings (3).

Assemble the door immediately after installation of the door window.

Courtesy of BMW OF NORTH AMERICA, INC.
