51 13 045 Removing and installing/replacing front side panel trim on left or right

Special tools required:

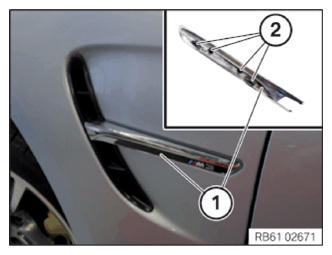

Release trim (1) with special tool 00 9 327 on retaining lug (2) and remove carefully.

Installation note:

Retaining lugs (2) must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

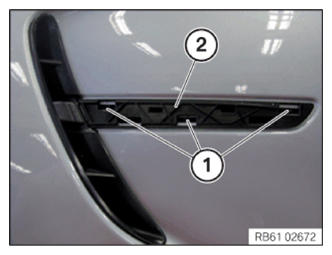

Release retaining lug (1) from trim (2) and remove.

Installation note:

Retaining lugs (1) must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

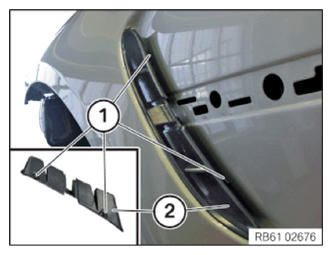

Release retaining lug (1) from air duct (2) and remove air duct (2) towards the rear.

Installation note:

Courtesy of BMW OF NORTH AMERICA, INC.

Retaining lugs (1) must not be missing or damaged.
