51 12 825 Removing and installing/replacing guide for rear center bumper panel
Necessary preliminary tasks:
- Remove REAR BUMPER TRIM
- If necessary, remove SENSOR FOR LANE CHANGE WARNING

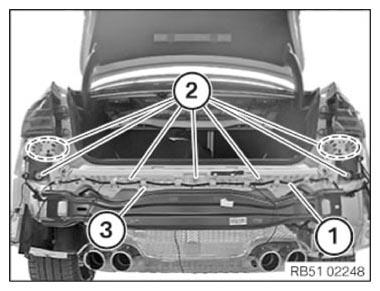

Feed out cable (1).
Unscrew nuts (2).
Tightening torque: 51 12 2AZ .
Remove guide (3).
Installation note:

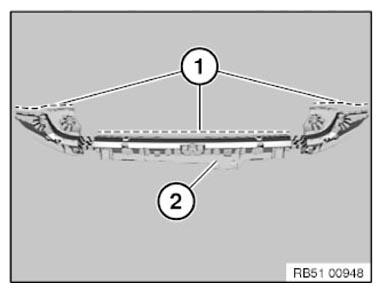

Latch mechanisms (1) of guide (2) must not be damaged or missing.
