51 12 223 Removing and installing/replacing cover for rear bottom center bumper panel

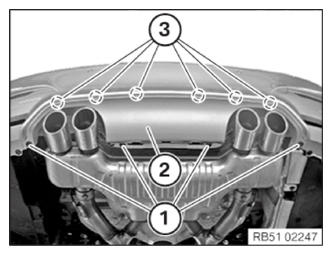

Release screws (1).

Detach cover (2) from latch mechanisms (3) by pressing towards the back.

Installation note:

Latch mechanisms on cover (2) must not be damaged or missing.

G13693072Courtesy of BMW OF NORTH AMERICA, INC.
