51 12 050 Removing and installing/replacing support for rear bumper panel

Necessary preliminary tasks:

Depending on version:

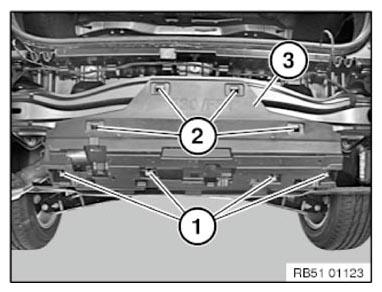

Unscrew screws (1).
Unlock and disconnect plug connection on Smart Opener control unit and bumper aerial

Loosen the latch mechanisms (2) at reinforcement (3).

Remove reinforcement (3).

Installation note:

Catches (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, feed out cable.

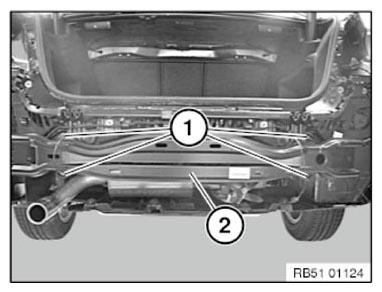

Unscrew nuts (1).

Tightening torque: 51 12 1AZ .

Remove support (2).

Courtesy of BMW OF NORTH AMERICA, INC.
