51 11 158 Replacing base plate for number/license plate
Only use the vehicle-specific number plate baseplate.
The installation of other license plate baseplates is not permissible.
The number plate must be mounted exactly on the number plate baseplate.
If a number plate baseplate is not offered for the corresponding national-market version, the number plate must be mounted directly on the bumper using a drilling template (BMW drilling template 2354779 for number plate support, F80/F82 and F83.).
Incorrect assembly leads to a malfunction of the sensors of the driver assist systems.
NOTE:
Schematic diagram is example of F30 Europe national-market version.

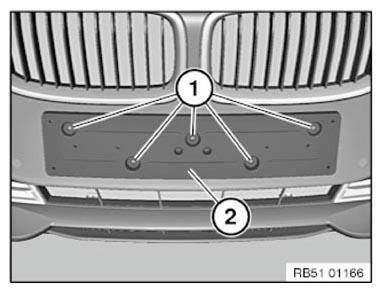

Release screws (1).
Tightening torque: 51 11 8AZ .
Remove holder (2) towards front.
If replacing bumper:

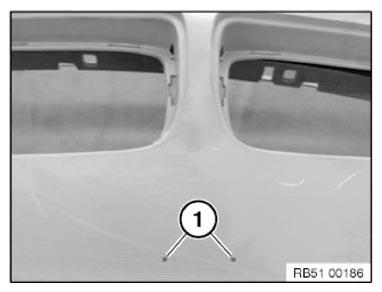

Drill out marks (1) on bumper to 10 mm.
Attach support (2) to bumper and insert screws (1).
Tightening torque: 51 11 8AZ
